CHINS LiFePO4 Battery 24V 200Ah Lithium Battery – Built-in 200A BMS, 2000+ Cycles, Perfect for RV, Home Storage and Off-Grid

Highlights

Deep Cycle Battery
This LiFePO4 battery provides 2000+ cycles compared to 300 to 500 cycles in the lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times that of the standard lead-acid batteries. The weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.

Lithium Iron Technology & Built-In 200A BMS
With lithium iron technology and battery management system, LiFepo4 battery will not burn when overcharged, over-discharged, overcurrent, or short-circuit, and can withstand high temperatures without decomposition.
It can support fast charging and solar panel charging, and it does not contain any heavy metals or rare metals. Fits for outdoor camping power and indoor easy installation.

Capacity Expansion
This Lifepo4 battery can be connected in parallels and in series for larger capacity and voltage. Max connection in series: Up to 2 identical batteries for up to 48V connecting in series. Connection in parallels: it can connect multiple batteries, suggest no more than 4pcs in parallel. Allow to be extended up to 2 in series and 4 in parallel (Max 2S4P) to get more capacity (Max 800Ah) and higher voltage (Max 48V). Other installation methods: 2S1P, 2S2P, 2S3P, etc.

Wide Application
It can be used in the following areas: Home energy storage systems, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, etc.

Specification

General	Brand: CHINS Type: LiFePO4 Lithium Battery Model: Gre24200 Color: Orange
Specification	Nominal Voltage: 25.6V Rated Capacity (0.2C): 200Ah / 5120Wh Cycle life: 2000+ cycles at 80% discharge depth Charge Voltage: 28.4v-28.8v Depth of Discharge (DoD): 100% Charge Current: 50A Charging time: Approximately 5 hours Max continuous charge current: 100A Max continuous discharge current: 200A Peak discharge current: 600A (Duration: less than 5 seconds) Operating temperatures: Charge 0°C – 50°C (32°F – 122°F), Discharge -20°C – 60°C (-4°F – 140°F), Storage -20°C – 50°C (-4°F – 122°F) Impedance: ≤ 6mΩ
Weight & Size	Product Weight: 39.2kg Product Size(L x W x H): 520x269x220mm Package Size(L x W x H): 630x365x340mm

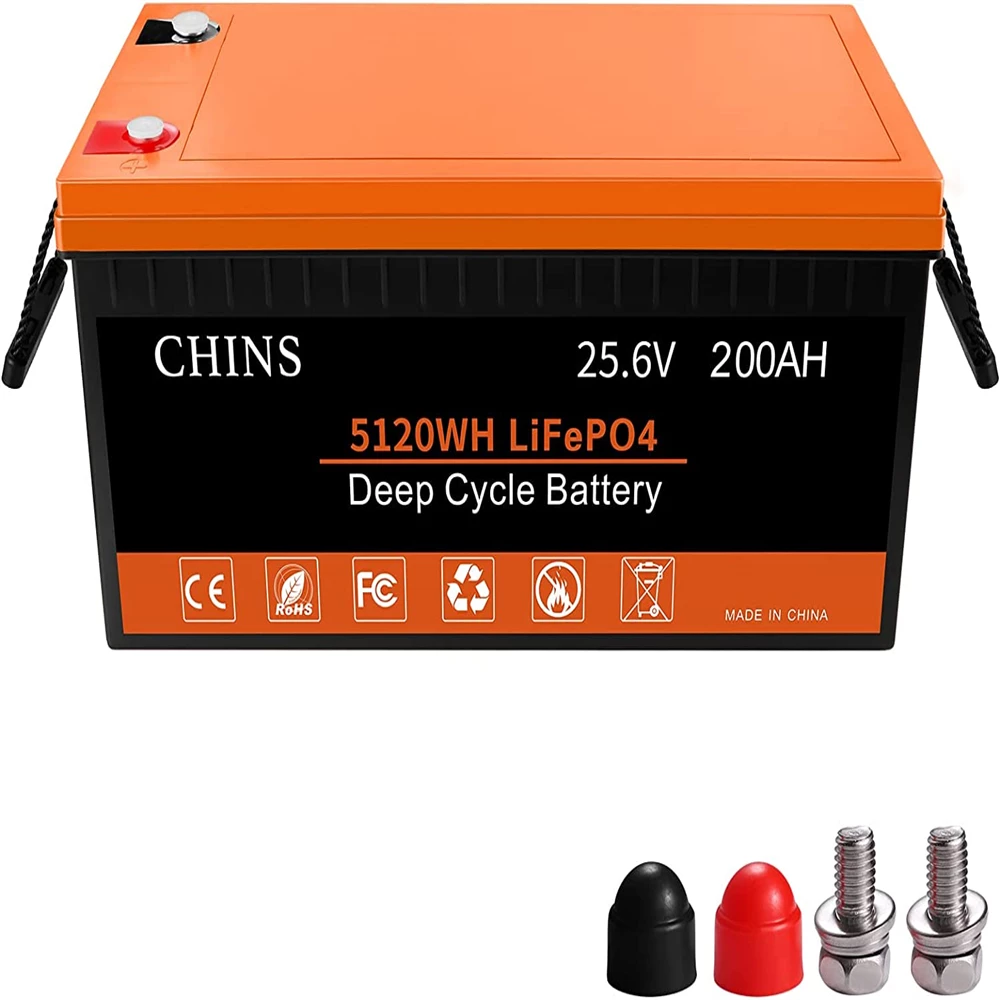

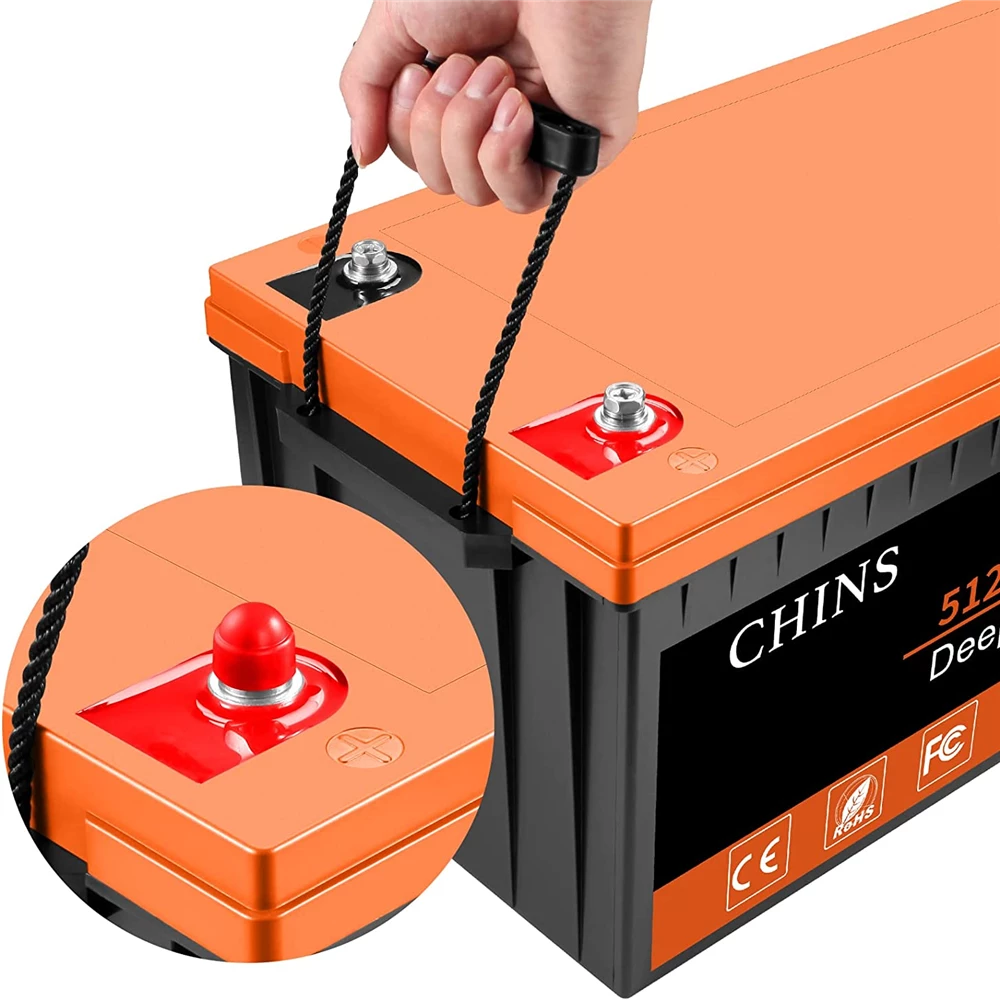

Package Contents	1 x LiFePO4 Lithium Battery 1 x ABS Case  2 x Terminal Connections
