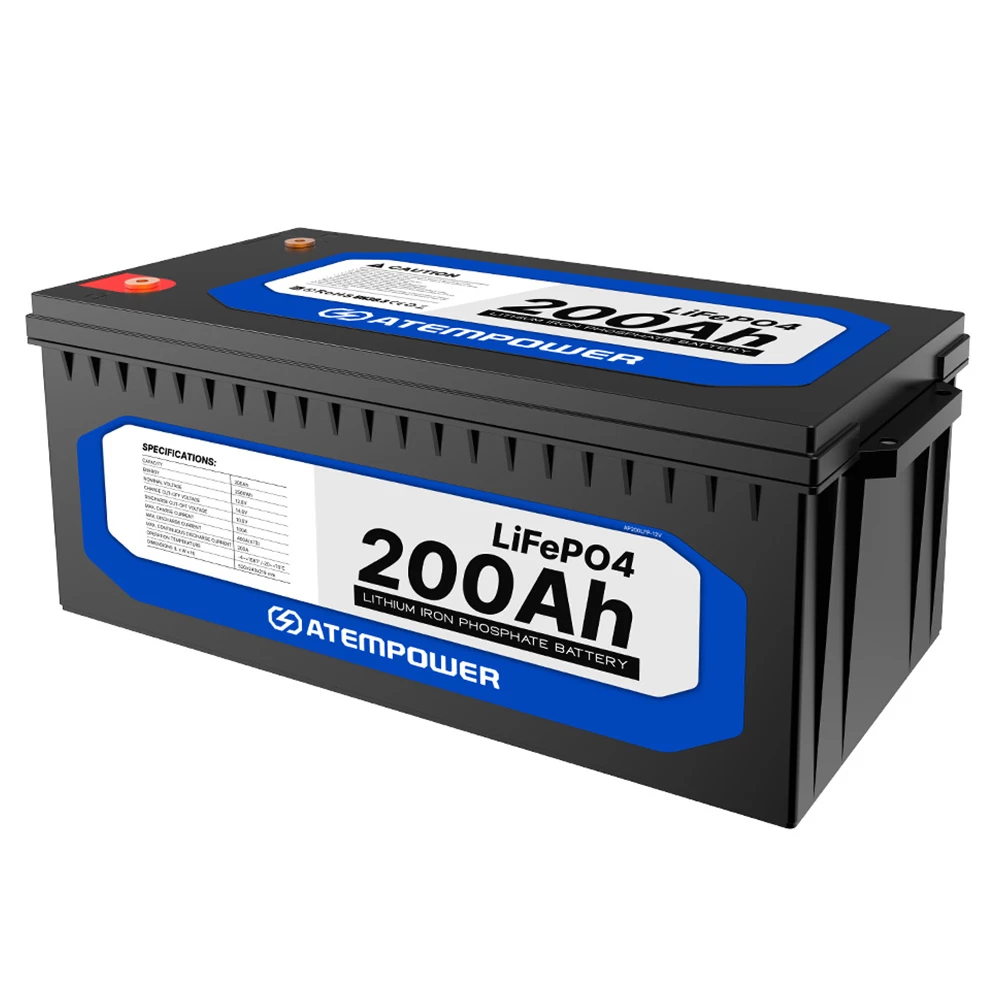

ATEM POWER 12V 200Ah Lifepo4 Battery, 200A Continuous Discharge, Deep Cycle, Built-in BMS, Run in Parallel or Series

Highlights

A Grade Cell
This battery is composed of A-grade cells, and the terminals of the cells are bolted that deliver higher amperage loads and better current conductivity. It provides 200AH which is double the power of a lead acid battery but 1/3rd of that weight when towing or mobility is in consideration.

Longer Lifespan
This LiFePO4 battery can deliver up to 2,000 rounds, which is several times the life of a lead-acid counterpart.

Higher Usable Capacity
AGM is recommended to be discharged to 50% of the capacity while ATEM POWER LiFePO4 batteries can be discharged to 80-90%.

High-Quality BMS
It allows 200A continuous discharge and provides voltage/ temperature monitoring and smart balancing to add rigid strength to each cell.

High Power Output
It has been designed to allow sufficient discharge amp rating to power high-power appliances such as a microwave or coffee machines.

Run in Parallel or Series
Designed to allow for up to 2 batteries in series or 3 batteries in parallel to achieve the desired voltage and amp-hour capacity of the bank.

Faster Charging
Lower internal resistance allows this lithium battery to accept charge at a greater rate, allowing it to be charged and ready to use much faster.

Low Self-Discharge
This lithium LiFePO4 battery has a low self-discharge rate, meaning it can be left standing for months and not run out of juice.

Safe & Smooth
This LiFePO4 battery is thermally stable and eliminates the risk of explosion and can operate efficiently at a temperature range of -20 – 70 Celsius.

Specification

General	Brand: ATEM POWER Type: Lifepo4 Battery Model: AP200LFP-12V Color: Black
Specification	Nominal Capacity: 200Ah Nominal Voltage: 12.8V Life Cycle: 2,000 Cycles Charge Voltage: 10V-14.6V Max. Continuous Charge Current(25 Celsius): 100A Max. Continuous Discharge Current(25 Celsius): 200A Max. Charge Current: 100A Max. Discharge Current(≤7S): 400A Internal Impedance: ≤10mΩ Charge Temperature: -20 – 70 Celsius Discharge Temperature: -20 – 70 Celsius Standard Operation Temperature: -20 – 70 Celsius Self-discharge Rate(per month): 2% Max. Modules in Series/Parallel: 2S/3P
Weight & Size	Package Weight: 27.3kg Product Size(L x W x H): 52*24*21.9cm Package Size(L x W x H): 58.5*33.5*33cm
Package Contents	1 x ATEM POWER 200Ah Battery 1 x User Manual
